Description

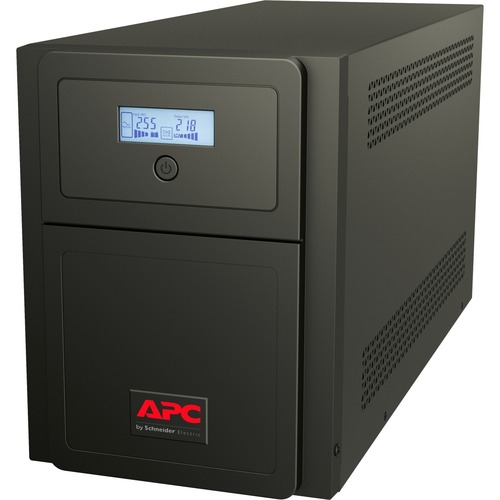

APC by Schneider Electric Easy UPS Line-interactive UPS - 2 kVA/1.40 kW - Tower - AVR - 4 Hour Recharge - 3.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - 6 x IEC 60320 C13 - Serial Port
UPS with the best value for money with backup battery & surge protection for electronics and computers
For our home and small office customers, Schneider Electric's APC offers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions and at the same time guarantee the quality of millions of professionals around the world.
Features
Experience higher efficiency with lower energy cost
Keep your sensitive devices powered with a backup of up to 3.60 minute at full load
Specifications :
Controls/Indicators
|
Status Indicators |
LCD Graphics Display:
LED Indicators:
|
Interfaces/Ports
|
Serial Port |
Yes |
|
USB (HID Compliant) Port |
Yes |
Management
|
Alarm |
Low Battery |
|
Overload |
|
|
On Battery |
Environmental Conditions
|
Maximum Operating Temperature |
40°C |
|
Maximum Operating Elevation |
3 km |
|
Maximum Storage Elevation |
3 km |
|
Sound Emission (A-Weighted) |
45 dB(A) |
Physical Characteristics
|
Weight (Approximate) |
23.50 kg |
|
Form Factor |
Tower |
|
Height |
240 mm |
|
Width |
180 mm |
|
Depth |
455 mm |
Battery Information
|
Battery Chemistry |
Lead Acid |
|
Battery Size |
12V |
|
Battery Capacity |
7000 mAh |
|
Number of Batteries |
4 |
|
Backup/Run Time (Half Load) |
12.10 Minute |
|
Backup/Run Time (Full Load) |
3.60 Minute |
|
Battery Characteristics |
Maintenance-free, Sealed, Leak-proof |
|
Typical Battery Recharge Time |
4 Hour |
Power Description
|
Input Voltage |
230 V AC |
|
Output Voltage |
230 V AC |
|
Waveform Type |
Sine Wave |
|
Input Voltage Range |
157 V AC - 303 V AC |
|
Output Frequency |
60 Hz |
|
Input Frequency |
65 Hz |
General Information
|
Product Type |
Line-interactive UPS |
|
Manufacturer Part Number |
SMV2000CAI |
|
Manufacturer Website Address |
|
|
Manufacturer |
Schneider Electric SA |
|
Product Name |
Easy UPS 2kVA Tower UPS |
|
Product Line |
Easy UPS |
|
Brand Name |
APC by Schneider Electric |
Technical Information
|
Application/Usage |
Computer |
|
Office |
|
|
SOHO Office |
|
|
Electronic |
|
|
Overload Protection |
Yes |
|
Plug/Connector Type |
IEC 60320 C14 |
|
Receptacle Type |
IEC 60320 C13 |
|
AVR |
Yes |
|
Transfer Time |
2 ms |
|
Receptacle Detail |
6 x IEC 60320 C13 |
