Description

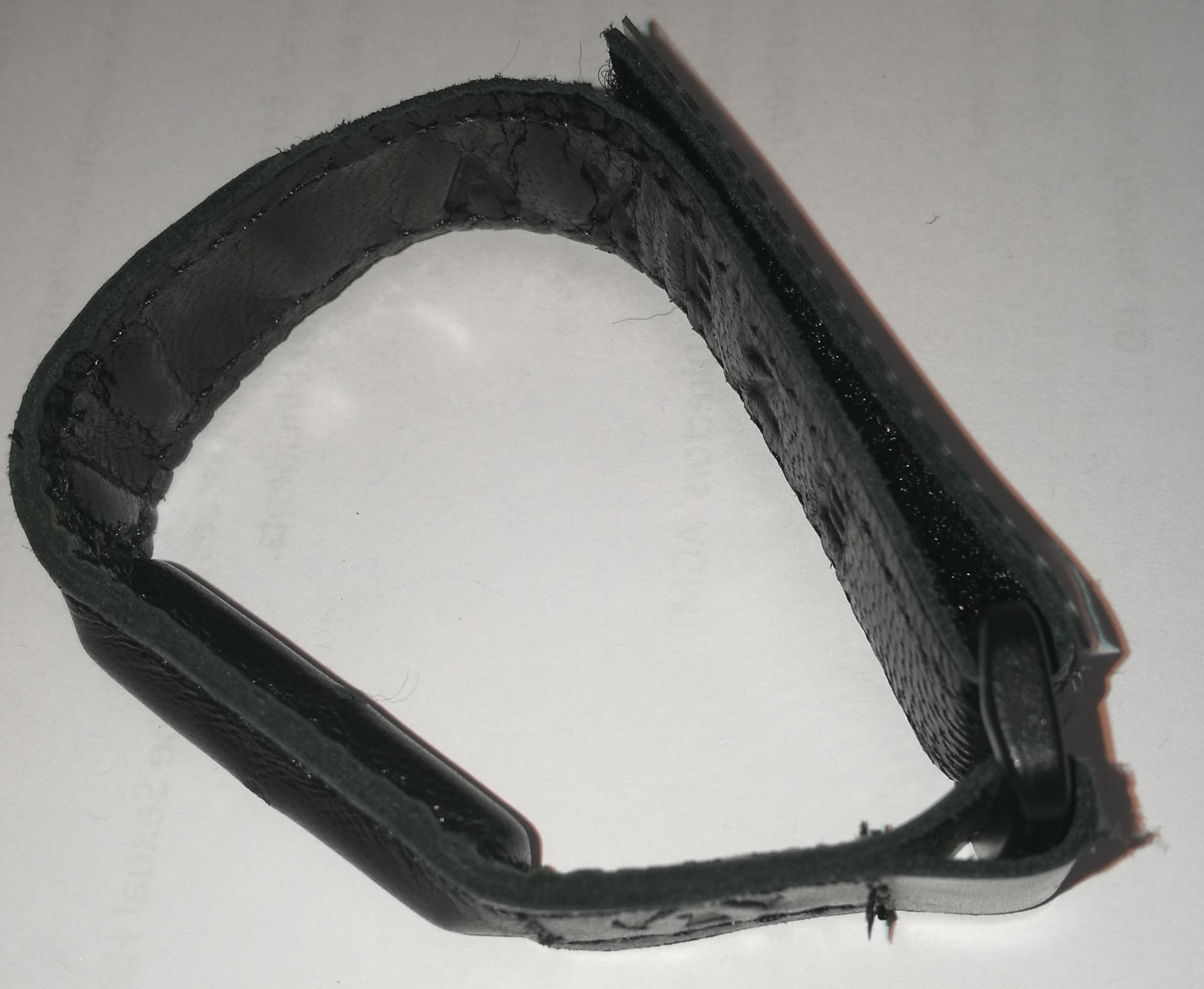

The WB-09 Glass Transponder wristband can be used with all Axeze LF readers, which currently include the KEP, KEN, CDK and KES ranges of Readers and Reader/Controllers. The wristband is made from quality black leather. All the specifications are identical to the WB-08 except the layout of the Glass Tag insert.
Specifications:
Functionality: Read Only
Memory (bits): 64
Memory Pages: 1
Operating Frequency: 134.2kHz
Modulation: FSK 134.2 kHz / 123.2 kHz
Transmission Principle: Half Duplex (HDX)
Power Source: Powered from the reader signal
Typical reading range: approx 7cm
Operating Temperature: -25 to +70C
Storage Temperature: -40 to +85C
Case Material: Glass
Protection Class: Hermetically sealed
EMC: Programmed code not affected by normal electromagnetic Interference or X-rays
Dimensions: 3.85 mm x 23.1 mm
Weight: 0.6g
Specifications:
Functionality: Read Only
Memory (bits): 64
Memory Pages: 1
Operating Frequency: 134.2kHz
Modulation: FSK 134.2 kHz / 123.2 kHz
Transmission Principle: Half Duplex (HDX)
Power Source: Powered from the reader signal
Typical reading range: approx 7cm
Operating Temperature: -25 to +70C
Storage Temperature: -40 to +85C
Case Material: Glass
Protection Class: Hermetically sealed
EMC: Programmed code not affected by normal electromagnetic Interference or X-rays
Dimensions: 3.85 mm x 23.1 mm
Weight: 0.6g
