Description
**Discontinued**

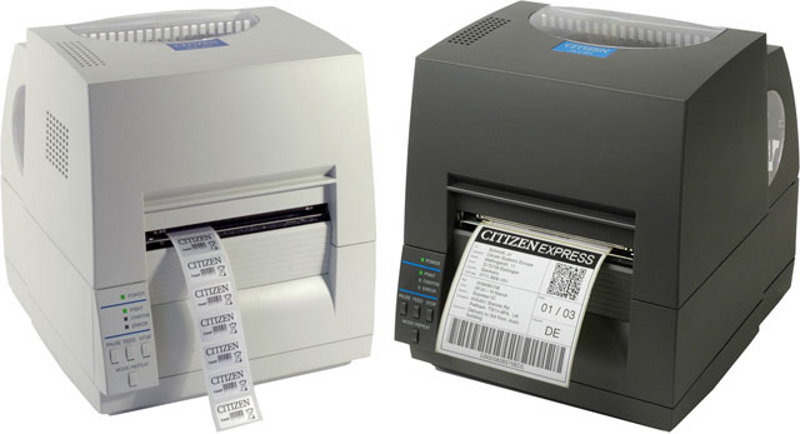

The powerful CLP-631 provides users with unparalleled features in the desktop thermal printer class. With crisp 300 dpi printing for images or fine text and an unprecedented 360-meter ribbon for greater productivity and reduced downtime the CLP-631 is a high-performance printer built for the desktop environment. Citizen's unique metal Hi-Lift™ mechanism allows easy access for loading of media and/or ribbons and the adjustable media sensor can handle a wide variety of label configurations including standard and pediatric medical wristbands. The powerful on-board 32 Bit RISC processor delivers exceptional throughput and fast first label out. The CLP-631 comes standard with internal parallel, serial, and USB interfaces. Optional Ethernet and Wifi interfaces are also available.
Main Features :
- Thermal Transfer Technology
- Build in power supply
- High Speed printing, up to 4 inches/sec
- ZPL® command emulation available on the CLP631Z
- Heavy duty Metal Clam Shell Printer
- Easy Label Loading
- Active Ribbon control and positioning
- Bar-code Printing
- Equipped with Parallel, RS232 & USB Interfaces
- Easy Printing operations
- VuePrint™ Menu
- Tear of Mode
- Also available in 300dpi (CLP631)
- Factory options: Auto cutter, Label Peeler
Attachments
Specifications
|
Printing Method |
Thermal Transfer or Direct Thermal Printing |
|
|
Printing Speed (Max.) |
up to 100 mm/sec (4 inches/sec) |
|
|
Print Density |
Adjustable with software |
|
|
Fonts |
1 Scalable, 8 Bitmap, OCR-A & B |
|
|
True type Download |
Supported Standard |
|
|
Media Type |
Roll or Fanfold; Continues or Perforated; die cut labels; Tags & Tickets |
|
|
Media Sensing |
Label Gap, notch or reflective |
|
|
Resolution/Dot pitch |
CLP631: 300 dpi, 10 dots/mm |
|
|
Media width (Min-Max) |
19 - 118 mm |
0.75 - 4.65 inches |
|
Media Roll Size (Max) |
125 mm, 5 inches (Internal); External media supply path available |
|
|
Media Thickness (Min-Max) |
0.0635 - 0.254 mm |
0.0025 - 0.01 inches |
|
Printing width (Max) |
104 mm |
4.1 inches |
|
Printing lenght (Max) |
812 mm |
32 inches |
|
Ribbon Type |
Wax, Wax-Resin or Resin |
|
|
Ribbon winding |
Inside or out |
|
|
Ribbon Length (Max) |
Approx. 360 m |
|
|
Ribbon size Ø |
74 mm |
|
|
Ribbon core size Ø |
25.4 mm |
|
|
Bar-code Symbologies |
Code3of9,UPC-A,UPC-E,Interleaved2of5, Code128, EAN-13, EAN-8, HIBC, CODABAR(NW-7), Plessey, Int2 of 5, CASE CODE, Code93, ZIP, UPC2DIG ADD, UPC5DIG ADD, UCC/EAN128(for K-MART), RandomWeight, Telepen, FIM, UPS MaxiCode, PDF417, Data Matrix, and QR code. |
|
|
Standard Interface |
Parallel |
IEEE1284 (Compatible, Nibble, ECP Mode) |
|
Serial |
RS232C, Baudrate from 2400-115200 |
|
|
USB |
Full Speed USB1.1 |
|
|
Optional Interfaces |
Ethernet Lan 10/100 |
|
|
WiFi, Wireless LAN |
||
|
Memory |
DRAM |
8 Mb, 0.5Mb available for user |
|
Flash Memory |
2 Mb, 0.5Mb available for user |
|
|
Weight |
4.5 Kg |
|
|
External Dimensions (W x D x H) |
231 x 289 x 270 mm |
|
|
Operating temp. range |
0 to 40 ºC, Humidity 30 to 80% |
|
|
Storage temp. range |
-20 to 60 ºC, Humidity 5 to 85% |
|
|
Standards |
EN60950, EN55022 (Class A), EN55024, EN61000-3-2, EN61000-3-3 |
|
|
Power |
220-240V (-10~+6%), 1.2A, 50/60Hz |
|
