Description

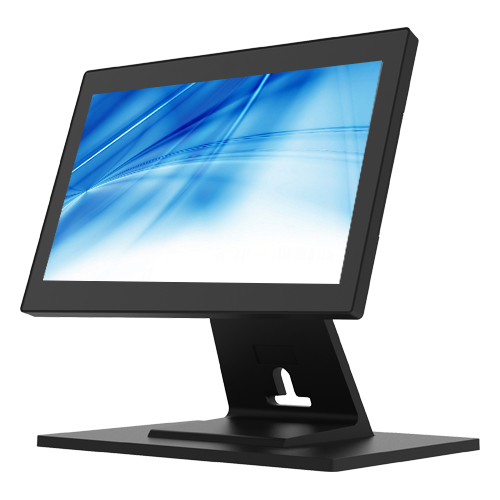

ELEMENT CA307 ANDROID TERMINAL
• Flexible selection of two processor platforms: MediaTek G700 and Intel® J6412
• Supports Windows, Linux, and Android operating systems
• 11.6” Full HD PCAP touchscreen
• Dual displays with flexible mounting design
• Effortlessly swap modular boxes for advanced adaptability
• Versatile selection of peripherals for better functionality
• Easily transition into wall-mount, pole-mounted, and self-service kiosk solutions.
Touch PC Module – CA307
Motherboard: G17
Processor: MTK G700 (MT8390)
Memory: 4GB DDR4
Storage: 64GB eMMC
I/O Ports
USB Type-A: 4x USB2.0
USB Type-C: 1x USB3.0 (DP/ PD 5V/2A, 12V/1A)
FeDP: 1x proprietary miniDP (for 2nd display)
Serial Port: 1x RJ48 (PoweredRS232) (default: 0V; support5V, 12V)
LAN: 1x RJ45
Cash Drawer: 1x RJ11
DC Jack: 1x 2PIN
Power button: 1
WLAN + BT: IEEE 802.11ax + BT5.2
O/S: Android 13.0 with GMS
Display Monitor Module – CA307
Size and Resolution: 11.6" 1366x768
Touch Screen: True-Flat PCAP multi-touch
Power Supply: 36W / 12V
VESA Mount: 75 x 75
