Description

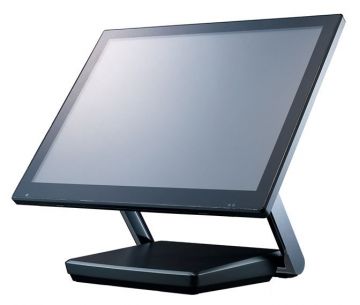

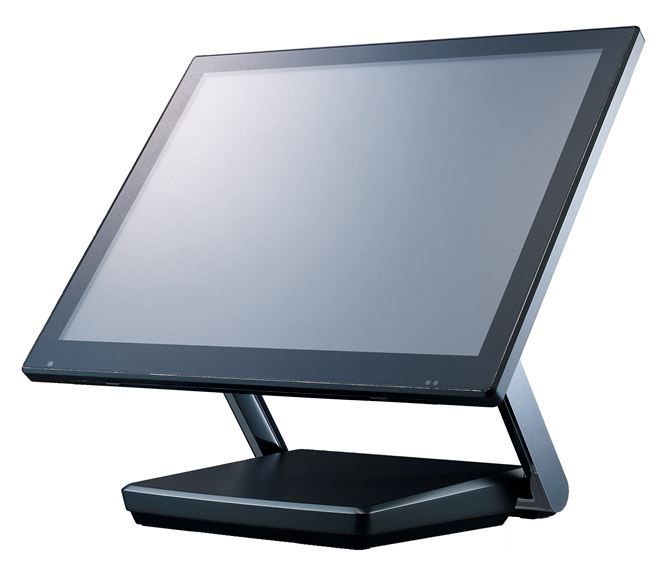

FEC XPOS XP3685W I3 8/128 15.6/P STD EXT1 SOM W10
The stand can be adjusted from 65° down to 15°. The display can be tilted to 180 ° angle inside of a compact packaging.
Expandable
The IO can be expanded from one layer into two layers with a single cable.
Experience
The ambient light sensor will automatically adjust the display depending on the brightness of the environment.
XP-3685W-1E XPOS XP-3685-PCT-400-1E (Galaxy Grey)
- XPOS 15.6 LCD with 400 nits backlight, 50 k hours
- Projective touch (P-Cap)
- Intel Core i3-7100U (software RAID enable)
- 8GB DDR4 RAM
- 128GB M.2 SSD
- With FEC DP port for 2nd display
- With Xtation SKU 1 External, 1M USB DP Cable
- With System on module for IO1 / SKU 1 / SKU 2 (SOM)
- Windows10 IOT Enterprise Value (64bit English) 1 SETS
- With 90W PSU
- Aluminum Die-casting
IO1 / SKU 1
- RJ 45 COM x 2 (COM3, COM4)
- USB2.0 TYPE A x 4
- CASHDRAWER (RJ11) x 1 (12V/24V)
- GIGA LAN x 1
- Video port x 1 (from SOM)
- SD card slot x 1 (for content of SOM)
- USB DP x 1 (to connect 2nd display)
- DC-in 20V x 1
The stand can be adjusted from 65° down to 15°. The display can be tilted to 180 ° angle inside of a compact packaging.
Expandable
The IO can be expanded from one layer into two layers with a single cable.
Experience
The ambient light sensor will automatically adjust the display depending on the brightness of the environment.
XP-3685W-1E XPOS XP-3685-PCT-400-1E (Galaxy Grey)
- XPOS 15.6 LCD with 400 nits backlight, 50 k hours
- Projective touch (P-Cap)
- Intel Core i3-7100U (software RAID enable)
- 8GB DDR4 RAM
- 128GB M.2 SSD
- With FEC DP port for 2nd display
- With Xtation SKU 1 External, 1M USB DP Cable
- With System on module for IO1 / SKU 1 / SKU 2 (SOM)
- Windows10 IOT Enterprise Value (64bit English) 1 SETS
- With 90W PSU
- Aluminum Die-casting
IO1 / SKU 1
- RJ 45 COM x 2 (COM3, COM4)
- USB2.0 TYPE A x 4
- CASHDRAWER (RJ11) x 1 (12V/24V)
- GIGA LAN x 1
- Video port x 1 (from SOM)
- SD card slot x 1 (for content of SOM)
- USB DP x 1 (to connect 2nd display)
- DC-in 20V x 1
