Description

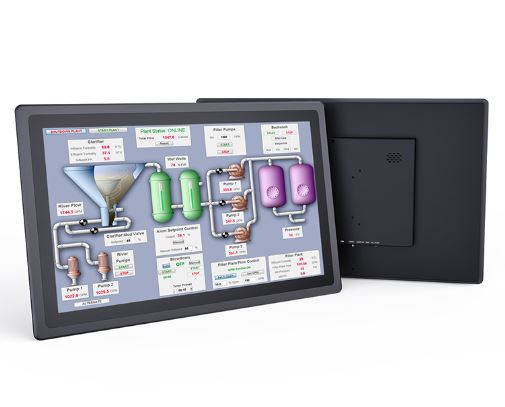

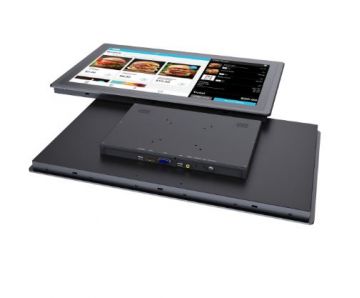

The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP65 front panel design is a great convenience for installation methods and applications.
Model No. : TK2150/T
Display : 21.5" LCD ,1920x1080
Input : HDMI,VGA, AV
Audio In/Out : Speaker, HDMI, Ear Jack
Feature : 1000nits brightness, 10-points touch, IP65, Metal Housing, Auto Dimming
Specifications :
|
Display |
Touch Screen (optional) |
10-points capacitive touch |
|
Panel |
21.5” LCD |
|
|
Physical Resolution |
1920×1080 |
|
|
Aspect Ratio |
16:9 |
|
|
Brightness |
1000 nits |
|
|
Contrast |
1000:1 |
|
|
Viewing Angle |
178°/ 178°(H/V) |
|
|
Input |
HDMI |
1 × HDMI 1.4b |
|
VGA |
1 |
|
|
AV |
1 |
|
|
SUPPORTED |
HDMI |
2160p 24/25/30, 1080p 24/25/30/50/60, |
|
1080i 50/60, 720p 50/60… |
||
|
Audio In/Out |
Speaker |
2 |
|
HDMI |
2ch |
|
|
Ear Jack |
3.5mm – 2ch 48kHz 24-bit |
|
|
Power |
Input Voltage |
DC 12-24V |
|
Power Consumption |
≤37W (15V) |
|
|
Environment |
Operating Temperature |
0°C~50°C |
|
Storage Temperature |
-20°C~60°C |
|
|
Water-proof |
Front Panel IP x5 |
|
|
Dust-proof |
Front Panel IP 6x |
|
|
Dimension |
Dimension(LWD) |
556mm × 344.5mm × 48.2mm |
|
Weight |
5.99kg |
