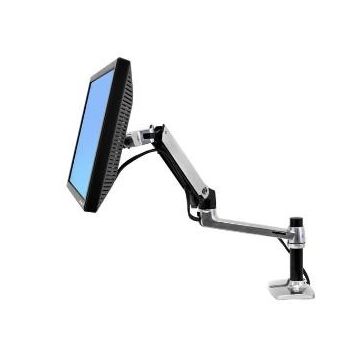

LX Desk Mount LCD Display Arm Polished Aluminium Max size 32in Max weight 11.3kg

45-241-026
$260.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+ −
Ask a question

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

Basic
Brand Name: Ergotron
Device Supported: Flat Panel Display
Maximum Load Capacity: 11.30 kg
Maximum Screen Size Supported: 81.3 cm
Product Type: Mounting Arm
VESA Mount Standard: 100 x 100
  75 x 75
General Information
Brand Name: Ergotron
Manufacturer Part Number: 45-241-026
Manufacturer Website Address: http://www.ergotron.com/Home/tabid/36/language/en-AU/Default.aspx
Manufacturer: Ergotron, Inc
Product Name: LX Desk Mount LCD Monitor Arm
Product Series: LX
Product Type: Mounting Arm
Miscellaneous
Additional Information:
  • Description: LX Desk Mount LCD Monitor Arm (polished aluminum)
  • Includes LX arm, extension, desk clamp and grommet mount bases, 7" pole
  • Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arm to extension for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
  • Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Weight Capacity: 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
  • Tilt Range: 70° backward, 5° forward
  • Product Weight: 7.8 lbs (3.6 kg)
  • Shipping Dimensions: 17.75" x 10.5" x 6.75" (45 x 27 x 17 cm)
  • Shipping Weight: 9.75 lbs (4.4 kg)
  • Warranty: Ten (10) years
Certifications & Standards:

VESA:

  • FDMI MIS-D
  • 100 mm x 100 mm
  • 75 mm x 75 mm
Compatibility:

Upto 24" LCD
Package Contents:
  • 45-241-026 LX Desk Mount LCD Arm
  • Mounting Hardware
  • Extension
  • Desk Clamp
  • Grommet Mount Bases
Physical Characteristics
Material: Aluminium
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
  75 x 75
Weight (Approximate): 3.54 kg
Product Information
Device Supported: Flat Panel Display
Features: 360° Rotation
  Pan
  Tilt
Maximum Load Capacity: 11.30 kg
Maximum Screen Size Supported: 81.3 cm
Number of Displays Supported: 1
Warranty
Limited Warranty: 5 Year

Attachments

Brochure (5_1048876_Brochure.pdf, 1,355 Kb) [Download]
