Description
** Discontinued - Replaced by Symbol LI4278 **

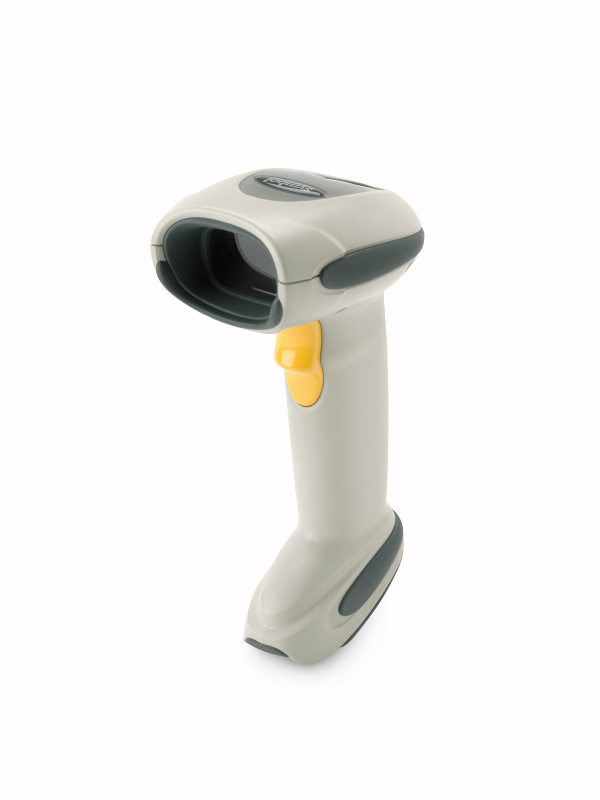

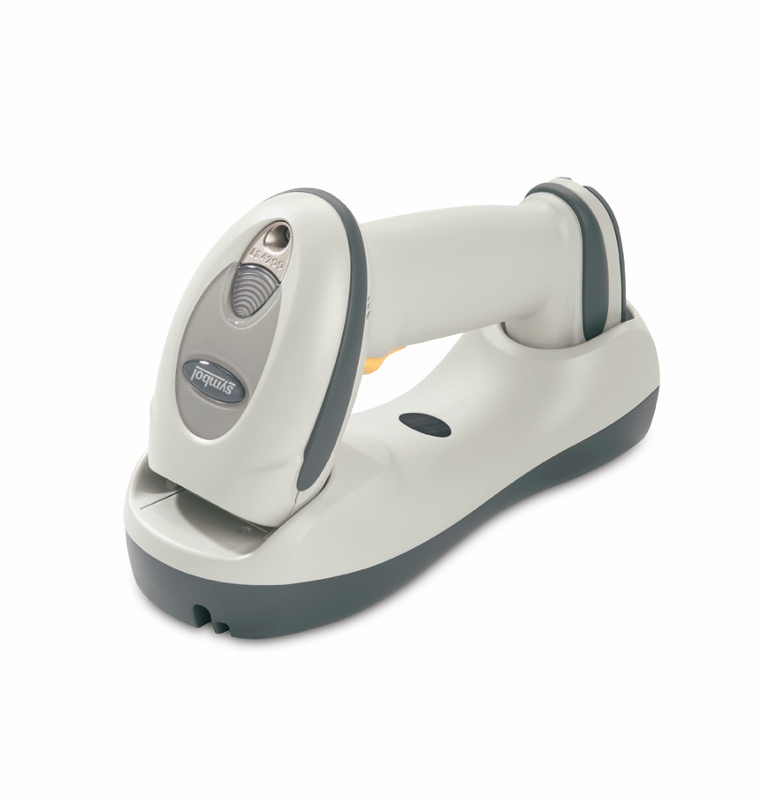

The innovative Symbol LS4278 Bluetooth®-enabled cordless bar code scanner delivers superior data capture anywhere in the workplace. Its multi-line rastering pattern eliminates the need for exact aim, enabling scanning within a 50-ft (15-m) radius and allowing operator extra room to move. This laser handheld device excels in retail, healthcare or light industrial environments, boosting productivity and profitability.
Main Features :
- Integrated Bluetooth
- Multi-line rastering scan pattern
- Remote Scanner Management (RSM)
- Allows use of up to three scanners with a single cradle
- Batch mode operation
- Powered through host cable, no need for a power supply
Attachments
Specifications
|
Physical Characteristics |
|
|
Dimensions |
Scanner: 7.3 in. H x 3.85 in. L x 2.7 in. W/ 18.5 cm H x 9.7 cm L x 6.9 cm W Cradle: 2.0 in. H x 8.35 in. L x 3.4 in./ 5 cm H x 21.1 cm L x 8.6 cm W |
|
Weight |
Scanner: ~8.4 oz./238 g; Cradle: ~6.4 oz./183 g |
|
Mounting Options |
Cradle supports vertical or horizontal positions |
|
Color |
Cash Register White (shown) or Twilight Black |
|
Performance Characteristics |
|
|
Light source |
650 nm laser diode |
|
Motor frequency |
50Hz |
|
Decode rate |
200 decodes per second |
|
Radio Range |
Minimum 33 ft./10 m; typical warehouse environment 50 ft./15 m |
|
Roll/Pitch/Yaw |
+/- 35° / 60° / 60° |
|
Print Contrast |
25% minimum reflectance |
|
Interfaces supported |
L S4278 cradle features on-board multiple interface with: RS-232C (Standard,Nixdorf, ICL and Fujitsu); IBM 468x/469x; keyboard wedge; USB (Standard, IBM SurePOS, Macintosh); laser/wand emulation. In addition, Synapse adaptive connectivity allows for connectivity to all of the above plus many non-standard interfaces |
|
User Environment |
|
|
Operating temp. |
32° to 122° F/0° to 50° C |
|
Storage Temp. |
-40° to 158° F/-40° to 70° C |
|
Humidity |
5% to 95% non-condensing |
|
Drop specifications |
Withstands multiple 5 ft./1.5 m drops to concrete |
|
Regulatory |
|
|
Electrical safety |
UL1950, CSA C22.2 No. 950, EN60950/IEC950 |
|
Laser Safety |
CDRH Class II, IEC Class 2 |
|
EMI/RFI: |
F CC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA |
|
Warranty |
3 years from the date of shipment. |
