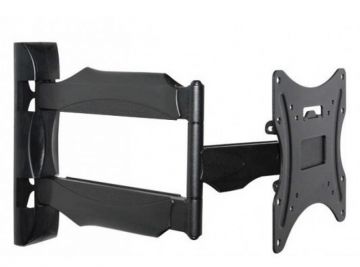

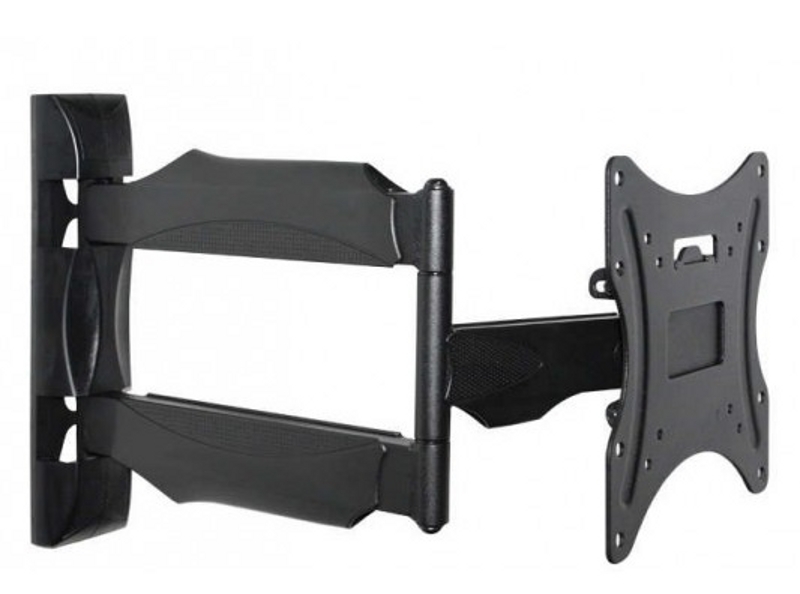

Telehook 10"-40" Ultra Slim Wall Mount

13TH-1040-VFL
$199.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+ −
Ask a question

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

An ultra-slim and cost-effective solution for wall mounting small TVs that weigh up to 27kg. Providing a steam-lined finish that supports your screen just 46mm from the wall, the articulated arm has three pivot points that enable superior control over screen position to perfect image quality and enjoyment. This Telehook arm comes pre-assembled, for quick and easy installation, assisted by a quick attachment mechanism and integrated cable management. It supports a variety of VESA mounting hole configurations and comes with a 10 year warranty.

Features:

  • Supports up to 27kgs.
  • Mounting hole pattern or Vesa of 100 x 100, 200 x 100 & 200 x 200mm.
  • Supports up to 400mm x 400mm via additional adaptor plate AP-AC-4040 (sold separately).
  • Minimum distance from wall 46mm.
  • Maximum arm reach 490mm.
Multimedia Code : 13TH-1040-VFL
Manufacturer Code : TH-1040-VFL

Attachments

13TH-1040-VFL (Telehook_TH-1040-VF_brochure.pdf, 1,314 Kb) [Download]

Specifications

Compatibility:

  • Supports one display weighing up to 27kg (60lbs)

  • Supported VESA mounting hole configurations: 100x100, 200x100mm, 200x200mm,

  • also supports 400x400 via additional adaptor plate AC-AP-4040 (sold separately)

  • Low profile design, allows display to sit only 46mm (1.8”) from wall (when folded)

Range of movement:

  • Allows full range of movement via 3 pivot points

  • Adjustable tilt: 10° of downward tilt

  • Adjustable pan (at the mounting head): 90° left and 90° right from the vertical plane*

  • Horizontal adjustment range: 5° left and 5° right

  • Maximum arm reach: 490mm (19.3”)

  • Minimum distance from wall: 46mm (1.8”)

Installation:

  • Comes pre-assembled for quick and easy installation

  • Latched quick attachment system for safe installation

  • Can be attached to masonry or timber stud wall

  • Minimum number of studs required when attached to timber stud wall: 1

  • Comes with the installation guide and mounting hardware for masonry and timber stud installation

  • Integrated cable management
