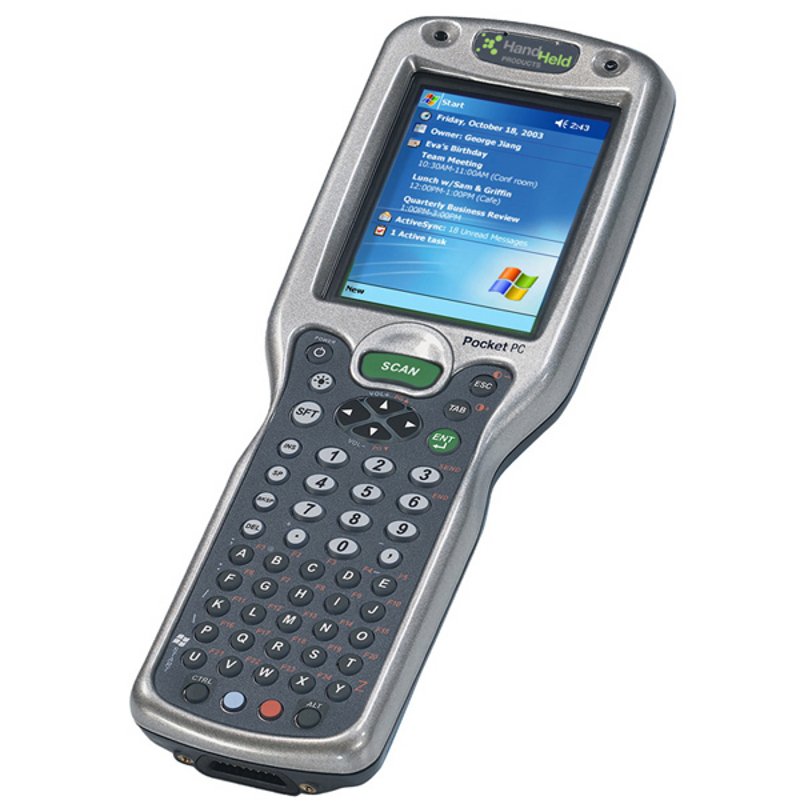

Portable Data Terminals : Honeywell D9500 Series Portable Data Terminal

D9500
$4,395.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+
Honeywell

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

Packed with state-of-the-art communication and data collection functionality, the Honeywell Dolphin® 9500 features a sleek, lightweight and rugged design, making it perfect for robust mobile applications in transportation, logistics and parcel delivery. Multiple full keypad options make the 9500 ideal for situations where alphanumeric data entry is required.

Main Features:
  • Rugged Mobile Computer
  • Intel® X-scale Processor, provides faster processing of data collection applications and imaging processing
  • Microsoft Windows Mobile 2003 2nd Edition
  • Powered by Adaptus™ 5.0 Imaging technology
  • Solid State Heavy Duty Construction, No moving parts!
  • Withstands multiple drops from 1.5 m onto concrete
  • Independently certified IP64 rating
  • Triple wireless radio design, optional integrated WAN, LAN & PAN radios
  • Long lasting Lithium Ion Battery

Attachments

Honeywell D9500 (D9500.pdf, 129 Kb) [Download]

Specifications



Specifications

Dolphin 9500

Processor

Intel  X- Scale PXA255 400 Mhz

Operating Platform

Windows Mobile 2003 2nd Edition Software for Pocket PC's

Memory

64 MB RAM x 32 MB non-volatile synchronous Flash standard

Memory Expansion

User-accessible Mini-SD memory interface; optional 256 MB RAM factory installed

Keyboards

3 backlit keyboard options:
35 Key Numeric - shifted Alpha
43 Key Alpha - shifted Numeric
56 Key full Alpha/Numeric

Display

3.8" 1/4 VGA (240 x 320 Portrait mode) color TFT LCD display with industrial grade Touch Screen

I/O Ports

Industrial grade mechanical connector supports:
communications: USB 1.1, Serial RS232 up to 115Kbps
Charging: via cradle or AC adapter cables
Integrated IrDA Port
Integrated Speaker, Microphone and Headset jack

Dimensions

245.3(H) x 87.6(W) x 57.6(D) mm at Display
69(W) x 38(D) mm at Grip

Operating Temp.

-10 ~ 50°C, can operate down to -20°C with potential degradation of performance depending on application.

*Specifications are subject to change without notice.
