Description
Discontinued, Replacement: PP-8800

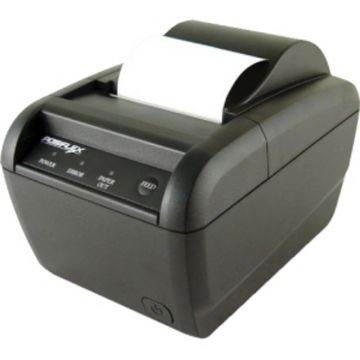

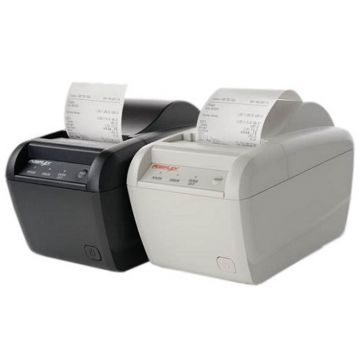

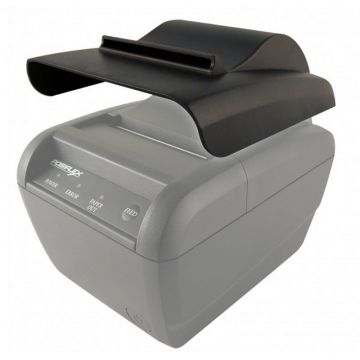

The Posiflex AURA 8000 POS Thermal Receipt Printer is a high speed direct thermal printer. It has a small streamlined design and is capable of working in harsh environments. It's optional top cover will make it more splash resistant. The Baud rate of the RS232 interface has been increased to 115200 bps for increased printing speed of graphics. The PP8000 comes standard with an 80mm thermal sensitive paper roll.
Main Features :
- POS Thermal Receipt Printer
- High Speed printing at 220 mm/sec
- Windows and OPOS drivers available
- High Resolution 8 dots/mm
- Low noise thermal printing
- Drop-and-load paper loading
- Available with RS232, Parallel, USB or Ethernet Interface
- Supports optional kitchen bell/buzzer
Attachments
Specifications
|
Printing Method |
Line Thermal Dot Printing |
|
Printing Resolution |
0.125 x 0.125 mm |
|
Dot pitch |
8 dots/mm (512 dots/line) |
|
Printing Speed (Max.) |
Max. 220 mm/Sec |
|
Paper feed method |
Friction |
|
Paper Type |
Thermal Paper Roll |
|
Paper Width |
80 ± 0.5mm or 58 ± 0.5mm |
|
Paper Roll Diameter |
Max Ø 83.0mm |
|
Paper Supply Method |
Easy Paper Loading, Drop in loading |
|
Emulation |
ESC/POS |
|
Input Buffer |
10 KB |
|
Sensors |
Paper End Sensor, Paper near en , Cover Open Sensor, Overheat, Cash Drawer Opening |
|
Drawer Ports |
1 port (opens 2 drawers, special cable is needed to open 2 drawers) |
|
Interfaces Available |
RS232, Parallel, USB or Ethernet |
|
Driver available |
Windows 2000/NT/XP/VISTA/7 |
|
Weight |
approx. 1.2Kg |
|
External Dimensions (W x D x H) |
148 x 205 x 143mm |
|
EMC/Safety Standards |
C-Tick, FCC Class A, RoHS, CE |
|
Power Supply |
External Power Supply: Input: 100 ~ 240 V AC, 50~60 Hz, 1.8A max @ 115V AC Output: 24V DC, Max 60W |
|
Power Consumption |
Printing 40 W, Sleep 0,7 W, Standby 0,15 W |
|
Operating Environment |
5-40°C, 10-90% RH |
|
Storage Environment |
-20-60°C, 10-90% RH |
