Description

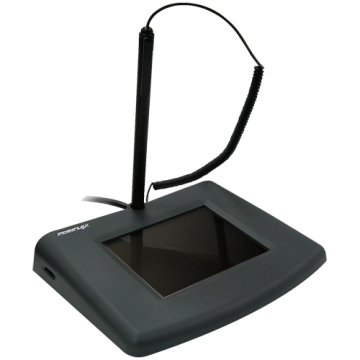

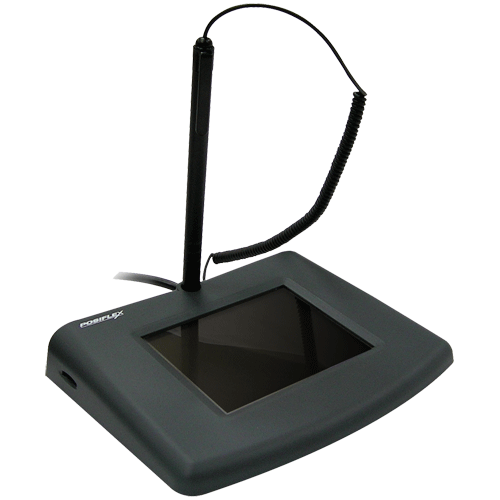

Posiflex SP-1200 Signature Capture Pad USB I/F for retail application
Features:
- Signature Capture Pad
- ITO resistive touch pad over 3.8" FSTN LCD
- Display area 3" (Width) x 2.3" (Height) with resolution 320 x 240
- Adjustable LCD backlight contrast
- Touch Resolution 500dpi and Data Conversion Rate 540 pps
- Low power consumption
- Provides smooth bitmap and resolution for signature verification
- Simultaneous view of electronic signature on LCD pad
Specifications:
Display
3.8" FSTN LED Backlit LCD Panel with LED Backlight
Resolution
320 x 240
Signature Area
58.6 mm (H) x 76.7 mm (V)
Touch Resolution
500 dpi
Touch Panel
ITO Resisitive transparent touch pad
Actuator
Tethered (spring coil) Stylus
Interfaces
USB - Ver. 1.1 (compatible to USB 2.0)
Output format
BMP
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 / POSReady 7
Software Utilities
VB & Visual C++ SDK
Operating Environment
0 ~ +45 °C, 20 ~ 85% RH non-condensing
Storage Environment
-20 ~ +60 °C, 85% RH non-condensing
Power Supply
5V DC from USB Port
Power Consumption
max. 70 mA
External Dimensions (WxDxH)
150mm x 122mm x 26mm
Weight
0.37 Kg
EMC/Safety Standards
FCC Class A, CE, C-tick
