Description
Discontinued Replacement: XT-3815

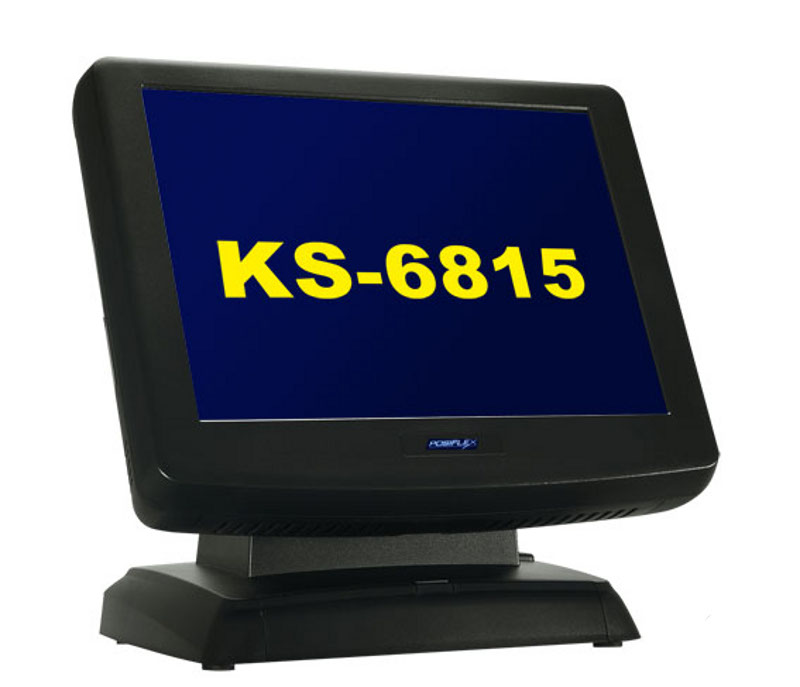

The KS6815 is a Fan Free Touch Screen System which fits perfectly in a wide variety of POS applications. It uses the new low power consumption Intel Atom Processor. It can be fitted with an optional Raid function with 2nd Hard drive. it also supports optional peripherals items such as MSR and CF Memory card reader to meet numerous applications. ks 6815 series suitable for Food & Hospitality and retail segmentation.
Features:
- PC POS Touch System
- Fan Free Design
- Cast Aluminium housing
- 15" LCD Display with 5-wire Resistive Touch Screen
- ATOM® 1.6 Ghz CPU
- 80 Gb Hard Disk
- 1 Gb RAM expandable to 2Gb
- Powered Serial ports
- Optional CF Slot
- Optional MSR, 2 Line Pole Display or 2nd LCD Display
Attachments
Specifications
|
CPU |
ATOM® 1.6 Ghz CPU |
|
Memory |
1 Gb expandable to 2 Gb |
|
Storage |
Standard with 3.5 inch 80 Gb Hard Disk Drive Also Supports optional SATA1 150MB/s devices Optional 2nd HDD with RAID Function |
|
LCD |
15" Active Matrix LCD Display |
|
Brightness |
250 nits |
|
Resolution |
1024 x 768 |
|
Touch Panel |
5-wire Resistive |
|
Connectivity |
3 RS-232 Ports (2 x DB9, 1 x RJ45) |
|
1 Parallel Port (Optional Proprietary Cable) |
|
|
6 USB Ports (4 x on I/O Plate, 2 x on leftside) |
|
|
VGA Port for 2nd Display |
|
|
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) |
|
|
10/100/1000Mb Ethernet Port |
|
|
UPS Port |
|
|
Power on wake up |
Through Alarm, LAN or Modem |
|
Sound |
2W Speaker in the main unit |
|
Size (W x D x H) |
378mm x 304mm x 364mm |
|
Weight |
7.7 Kg |
