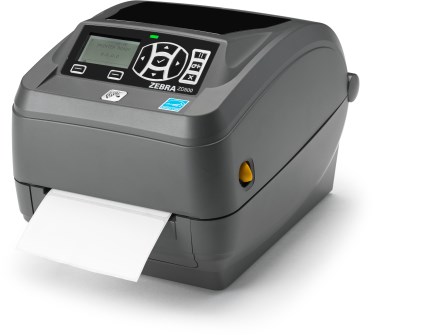

Zebra ZD500 TT 203 dpi EU+UK cutter USB SER PAR ETH 802.11abg BT ROW Label Printer

ZD50042-T2EC00FZ
$1,459.00 (Inc GST)
Free Shipping order above $500
For Special & Volume Pricing – Call +61 2 8806 0106
+
Zebra

Need Help

Choosing a Product
+61 2 8806 0106 Live Chat Email Us
Talk to our technical Expert
price match

Description

ZD500 TT 203dpi EU+UK cutterUSB SER PAR ETH 802.11abg BT ROW

Bringing Link-OS® environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing.

Specifications :

Basic

Product Type:

Direct Thermal/Thermal Transfe

Platform Supported:

PC

Maximum Print Width:

103.89 mm (4.09")

Power Source:

AC Supply



Power Adapter

Recommended Use:

Label Print

Form Factor:

Desktop

Maximum Print Resolution:

203 dpi

Brand Name:

Zebra

Media Type:

Tag Stock



Continuous Receipt



Label



Receipt



Wristband



Fanfold



Die-cut Label



Continuous Label



Roll Fed



Direct Thermal Label

Maximum Mono Print Speed:

152.40 mm/s

Environmentally Friendly:

Yes

Bluetooth:

Yes

Ethernet:

Yes

Wireless LAN:

Yes

USB:

Yes

Serial Port:

Yes

Maximum Label Width:

107.95 mm

Print Color Capability:

Monochrome

Energy Star:

Yes



Display & Graphics

Display Screen Type:

LCD



Fonts & Emulation

Language Emulation:

XML



ZPL II



ZPL



ZBI



General Information

Product Type:

Direct Thermal/Thermal Transfer Printer

Manufacturer Part Number:

ZD50042-T2EC00FZ

Manufacturer Website Address:

http://www.zebra.com/ap/en.html

Manufacturer:

Zebra Technologies Corporation

Product Model:

ZD500

Product Name:

ZD500 Desktop Printer

Brand Name:

Zebra



Interfaces/Ports

USB:

Yes

Serial Port:

Yes

Parallel Port:

Yes



Media Types & Handling

Media Thickness:

304.8 µm

Maximum Roll Diameter:

127 mm

Media Type:

Wristband



Roll Fed



Label



Continuous Label



Direct Thermal Label



Tag Stock



Receipt



Continuous Receipt



Fanfold



Die-cut Label

Media Sensor:

Cover Open Sensor



Adjustable Media Sensor



Transmissive Media Sensor



Reflective Media Sensor

Label Core Size:

12.70 mm

Ribbon Core Size:

12.70 mm

Maximum Label Width:

107.95 mm

Maximum Label Length:

990.60 mm



Memory

Flash Memory:

256 MB

Standard Memory:

128 MB

Memory Technology:

SDRAM



Miscellaneous

Platform Supported:

PC

Certifications & Standards:

Unicode

Environmentally Friendly:

Yes

Energy Star:

Yes



Network & Communication

Bluetooth:

Yes

Ethernet:

Yes

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Ethernet Technology:

Fast Ethernet



Physical Characteristics

Weight (Approximate):

2.22 kg

Form Factor:

Desktop

Height:

190.5 mm

Width:

193 mm

Depth:

254 mm



Power Description

Input Voltage:

230 V AC



120 V AC

Power Source:

Power Adapter



AC Supply



Technical Information

Maximum Print Width:

103.89 mm (4.09")

Recommended Use:

Label Print

Features:

Real Time Clock



Cutter

Maximum Print Resolution:

203 dpi

Maximum Mono Print Speed:

152.40 mm/s

Print Color Capability:

Monochrome
